RNode

RNode

$135 USD
$135 USD
Sale Sold out

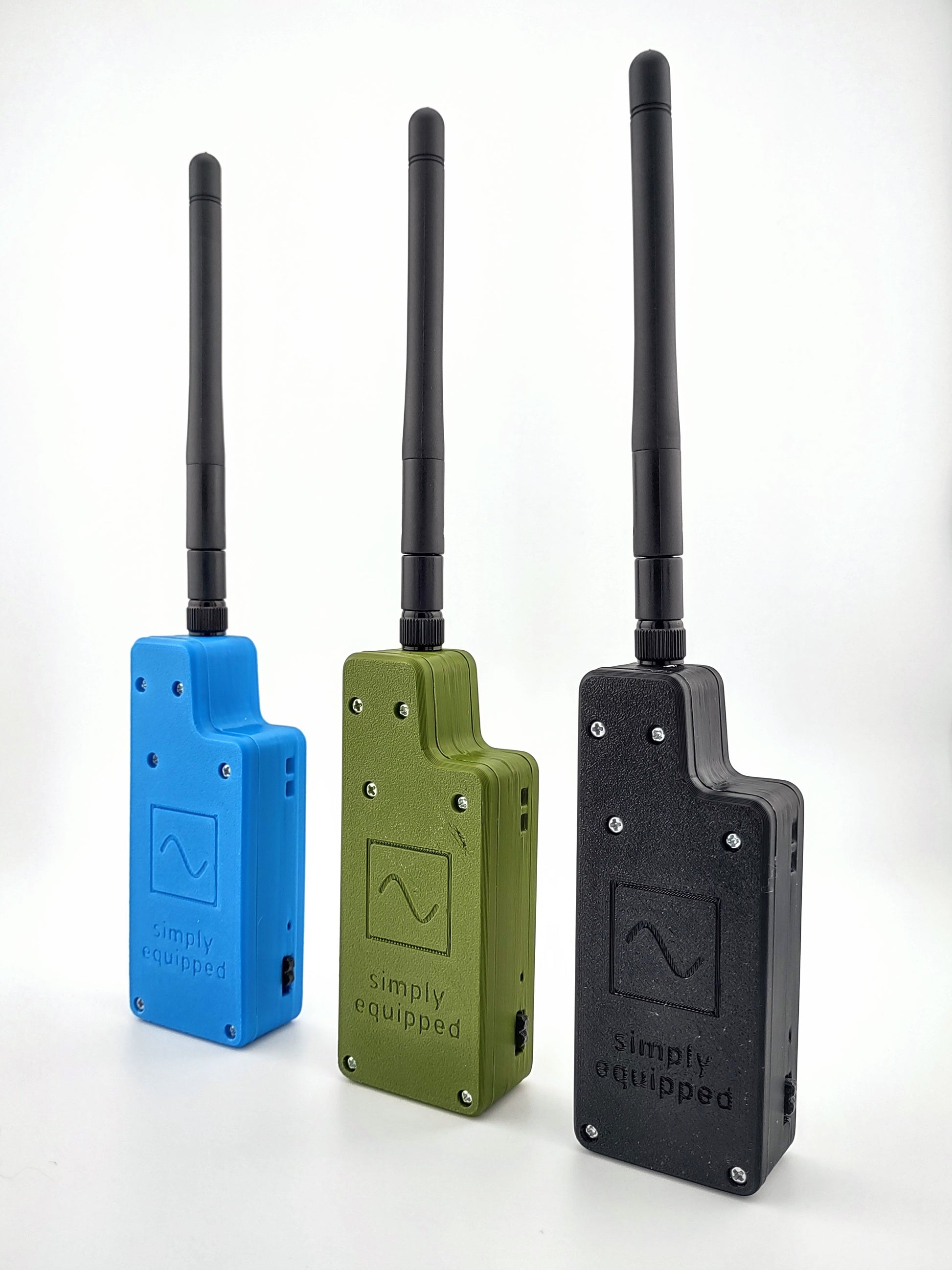

Color: Black

Portable mesh networking for everyday carry

The RNode is a portable radio module that connects to your smartphone via Bluetooth, enabling encrypted mesh communication wherever you go. Pair it with the Sideband app and you have a complete off-grid messaging system.

Built on the Reticulum Network Stack, the RNode creates resilient local and wide-area networks independent of cell towers and internet infrastructure.

Features

Portable power: The internal 2000mAh battery provides approximately 12 hours of runtime, making it ideal for travel, camping, hiking, concerts, and go-bags. Battery life varies based on transmit power, network configuration, and traffic volume.

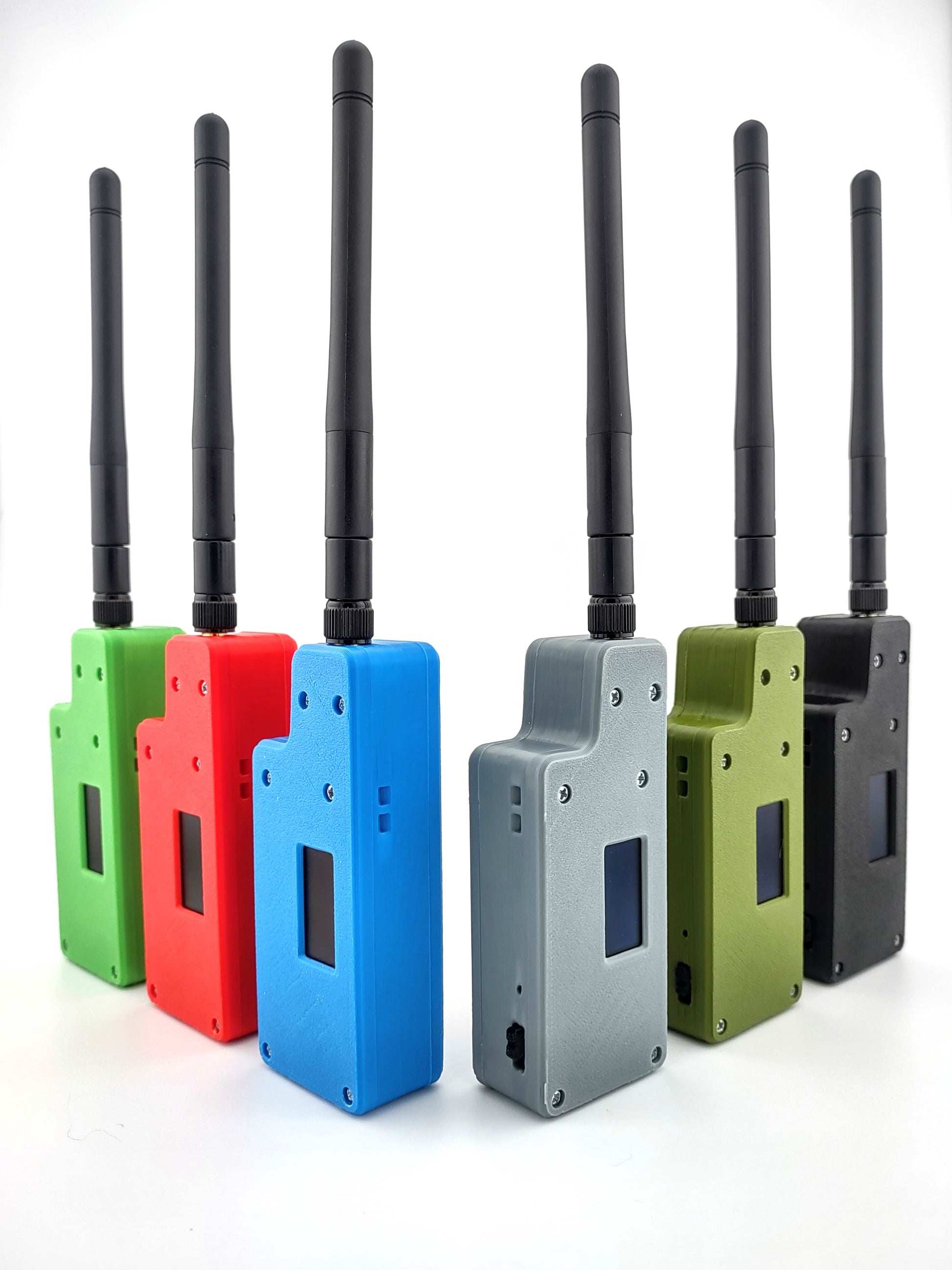

Durable construction: The 3D-printed ASA housing is more impact resistant, heat resistant, and UV resistant than standard ABS plastic.

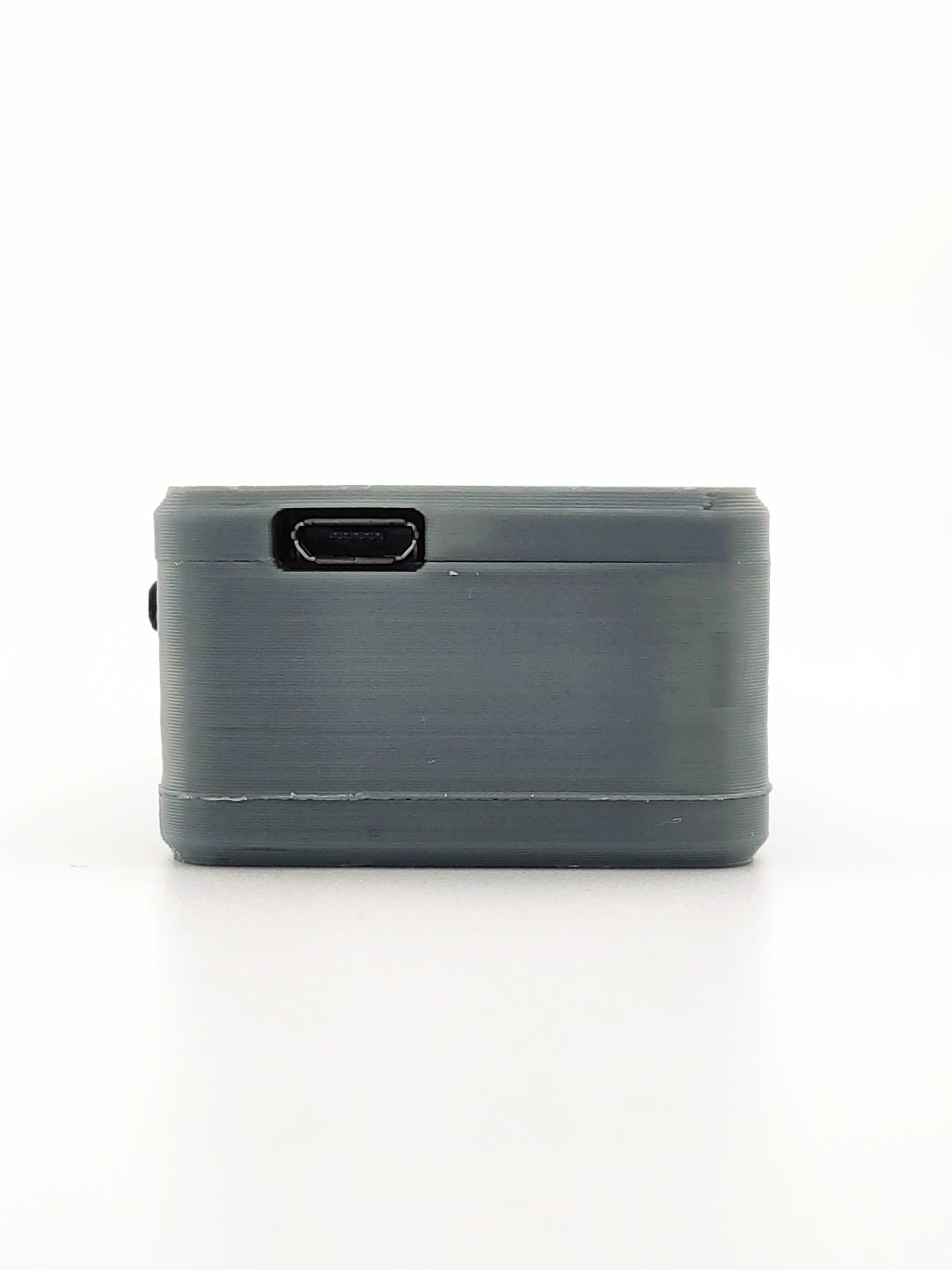

Flexible connectivity: Connect via Bluetooth or serial over micro-USB (USB-C adapter included). Charges via micro-USB.

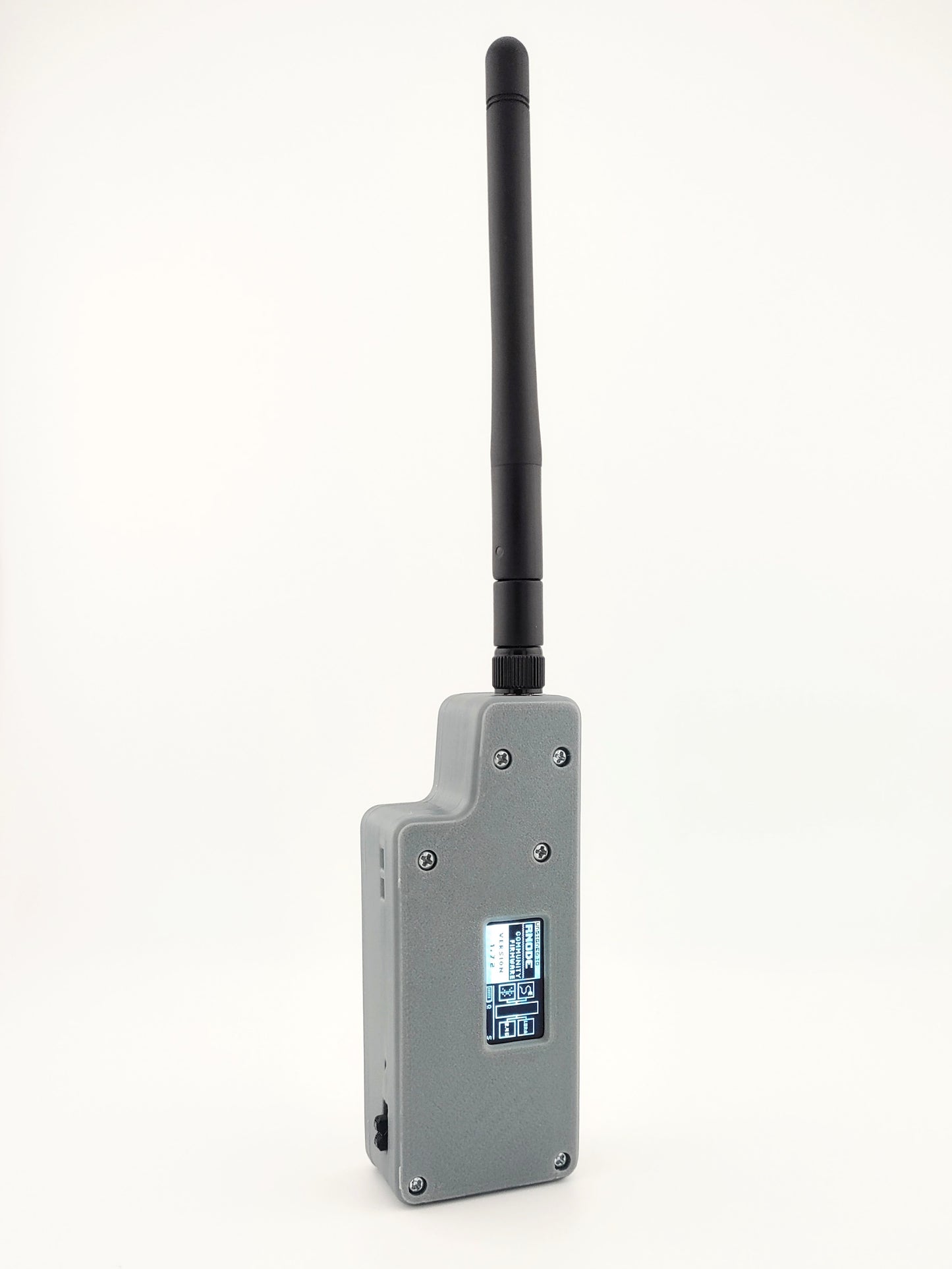

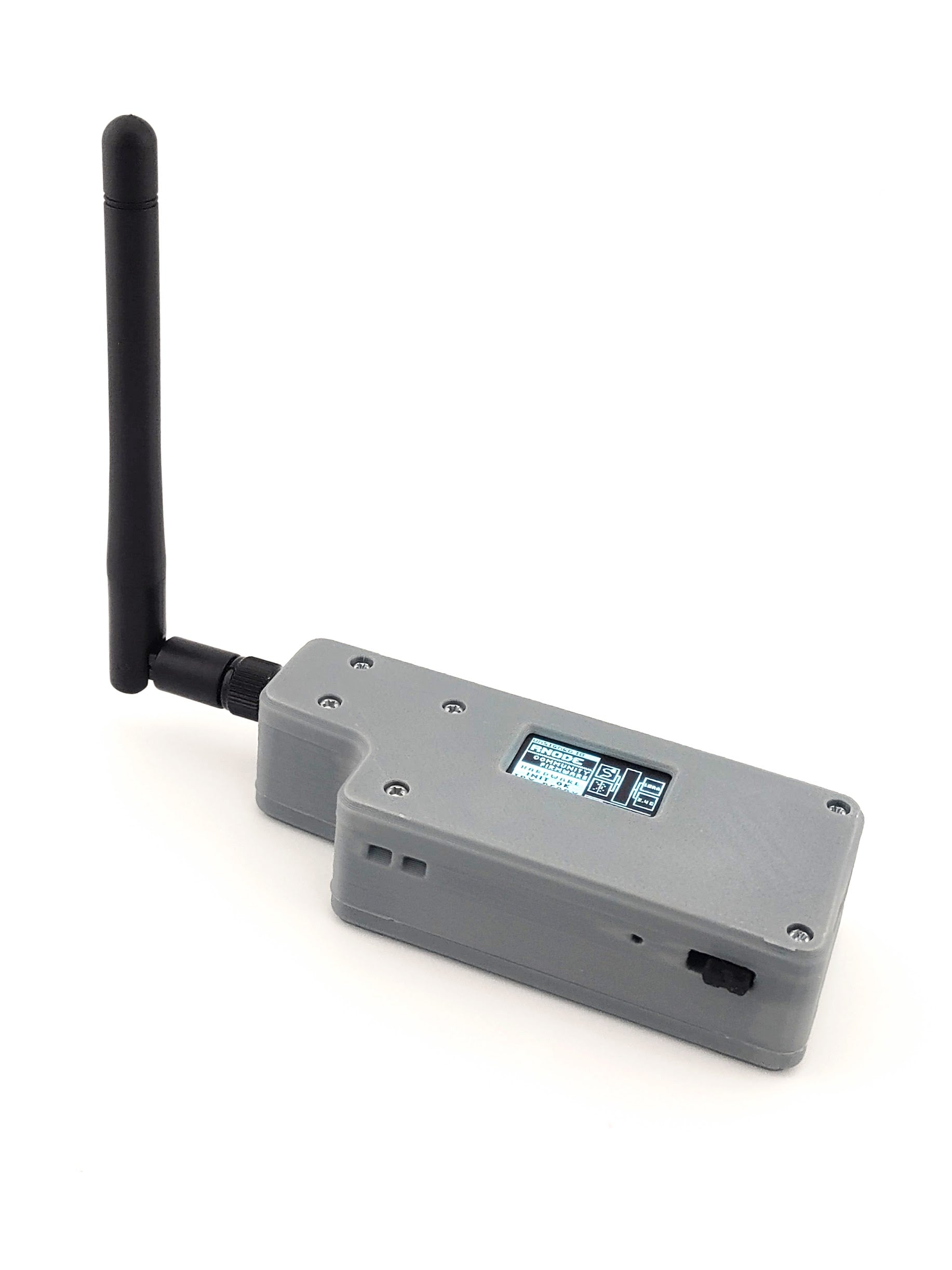

Built-in display: The 64 × 128 pixel OLED screen shows device status at a glance.

Specifications

  • Radio: Semtech SX1276, up to 17 dBm
  • Frequency: 915 MHz (USA) or 868 MHz (Europe), 820–1020 MHz band
  • Data rates: 20 bps to 21.88 kbps configurable
  • Battery: 3.7V 2000mAh lithium (included)
  • Connectivity: Bluetooth, micro-USB serial

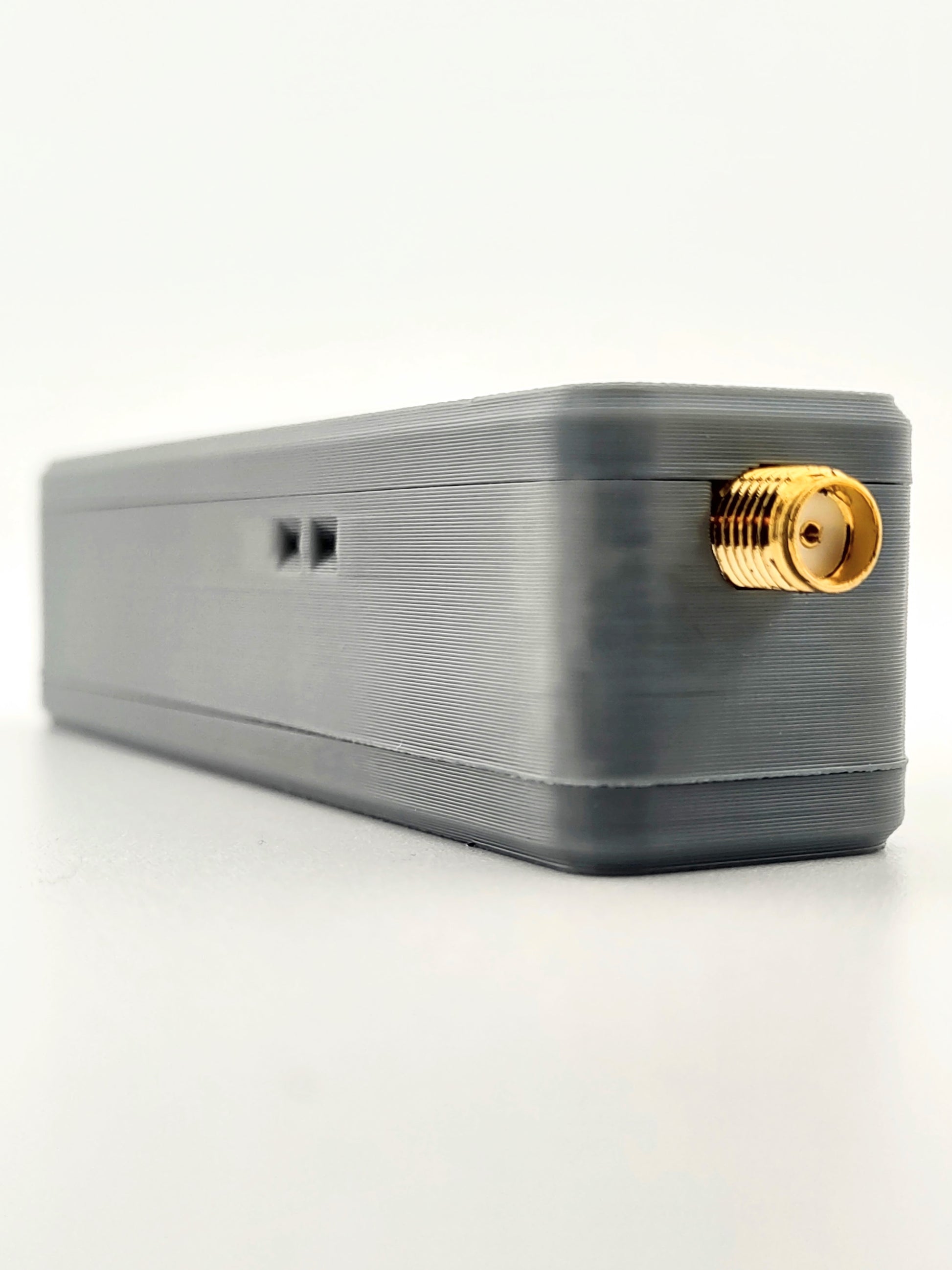

  • Antenna: External SMA (adjustable 915 MHz antenna included), internal WiFi/Bluetooth

Made in the USA from global components.

Getting Started

The simplest way to get started is with the Sideband mobile app.

Android: Check out the RNode Quick Start Guide to get started. Download the APK from the latest release page, or install through F-Droid by adding the Between the Borders repository. When installing directly, you may need to adjust your phone's settings to allow installation from unknown sources.

Windows, MacOS, Linux: See the unsigned.io Sideband page for installation instructions.

Open Source Attribution

RNode is fully open hardware and software. You can also build this device yourself.

Firmware: Developed by Mark Qvist / unsigned.io, licensed under GPLv3. See the unsigned.io RNode page for more information.

Enclosure: Original design by Mark Qvist / unsigned.io, modified by Simply Equipped with permission. Licensed under Creative Commons Attribution-ShareAlike, available on Tinkercad and Thingiverse.
